Limiting continuous current Ith max.: 6A
Nominal voltage: DC 6-110 volts
Voltage range UN: 0.75-1.3
Protection: RT II (welding proof wire)
Dimension Length x width x height: 37 x 25 x 10.8mm
Test voltage (AC), contact group - coil: ≥ 4 kV efficiency
Relay type: monostable state
Temperature range (- / +) : -40-75 °C
Type according to DIN EN 61810-3: Leave
Approved: TUV
Contact materials: AgSnO2, AgNi
Electrical clearance and creepage distance contact group - coil ≥ : 8mm

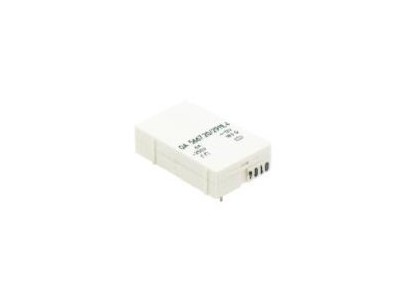

Relay type: OA 5667
